Custom Transmission Settings

NOTE: Settings on this page can only be modified when Efficiency Manager is in Custom or Manual Mode.

RXA0133712
RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0143050
RXA0143050-UN-26JUN14

Transmission Home Page

RXA0130327
RXA0130327-UN-11JAN13

Custom Settings Page

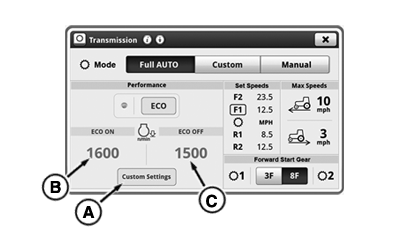

A - Custom Settings button

B - ECO Engine Speed ON Setting

C - ECO Engine Speed OFF Setting

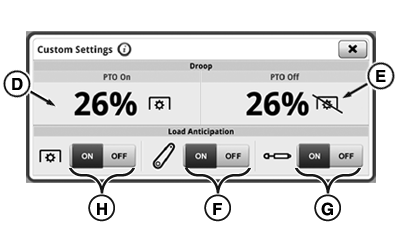

D - Engine Droop PTO ON Setting

E - Engine Droop PTO OFF Setting

F - Hitch Load Anticipation Toggle

G - SCV Load Anticipation Toggle

H - PTO Load Anticipation Toggle

Auto Shift Engine Speed Droop (D) and (E) limits the engine speed droop under full load before Efficiency Manager™ automatically downshifts. A lower percentage means less droop is allowed before downShift.

NOTE: Auto Shift Engine Speed Droop can be set from 6% —26%. Different values may be entered for operation with or without the PTO.

Press Transmission Shortcut Button on Navigation Bar.

On Mode bar, select Custom or Manual Mode.


Set Auto Shift Engine Droop

NOTE: Auto Shift Engine Speed Droop PTO ON can be set from 6% —26%.

  • Select Custom Settings button (A).
  • Select Auto Shift Engine Speed Droop PTO ON module (D). Value adjustment page appears.
  • Adjust percentage value to desired value by using increase (+) and decrease (-) buttons.

Minimum Engine speed (B) and (C) limits how much Efficiency Manager™ shifts up and throttles back to save fuel under light loads.


Minimum Engine Speed

NOTE: Auto Shift Engine Speed Droop PTO OFF can be set from 14% — 26%.

  • From Transmission page, select Custom Settings button (A).
  • Select Auto Shift Engine Speed Droop PTO ON (D) or Auto Shift Engine Speed Droop PTO OFF (E). Value adjustment page will appear.
  • Adjust percentage value to desired value by using increase (+) and decrease (-) buttons.

Turn Load Anticipation ON

  • From Transmission page, select Custom Settings button (A).
  • Use Hitch Load Anticipation toggle (F), SCV Load Anticipation toggle (G) or PTO Load Anticipation toggle (H) to turn hitch, SCV or PTO load anticipation ON or OFF.
