Adjust Set Speeds

CAUTION: Avoid unexpected rapid acceleration. Check and adjust set speeds before putting tractor in motion.

1. Turn key switch to RUN position.
2. Move left-hand reverser out of Park position. Forward and reverse set speeds will scroll on corner post display pausing at each speed for 2 seconds.
3. Adjust each speed when it displays by rotating set speed adjuster on speed control lever forward to increase set speed value or rearward to decrease it. NOTE: Set speed adjustments may affect corresponding set speed of opposite direction (see Adjusting Reverse/Forward Speed Ratio in this section).


   On corner post display, set speed of selected speed band is displayed in orange and ground speed of tractor is displayed in white. Set speed can be adjusted while tractor is moving by rotating set speed adjuster dial (B). Increasing set speed value increases ground speed. Decreasing set speed value decreases ground speed. New set speed (A) is indicated on display.

4. Select set speed that is approximately 3.2 km/h (2 mph) higher than desired working speed in order to obtain maximum productivity in applications where precise forward speed is not critical, such as plowing. Tractor reaches higher set speed value during no load or light load condition.

RXA0130015-UN-11DEC12

Corner Post Display

RXA0127845-UN-22AUG13

Set Speed Adjuster Dial

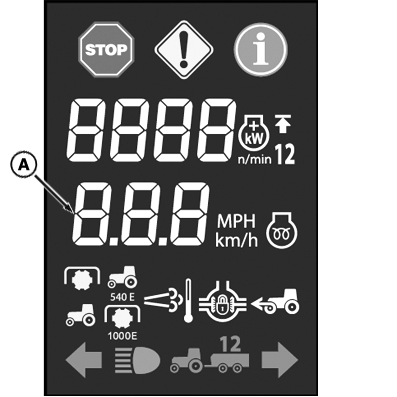

A - Set Speed

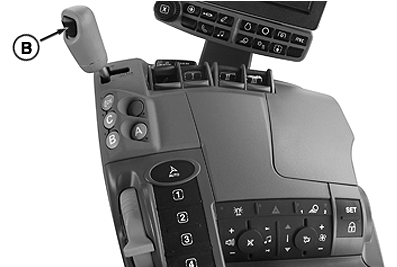

B - Set Speed Adjuster Dial

CommandQuad™ Ranges

Set Speeds For Given Gears (Group 48 Tires)
