CommandCenter™ Transmission Main Page

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0128094-UN-14SEP12

Menu → Tractor Settings Tab → Transmission Icon

RXA0143052-UN-26JUN14

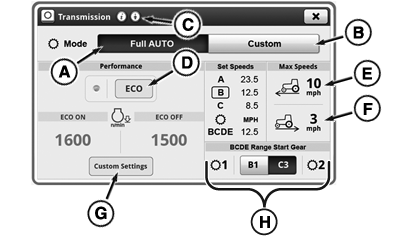

Transmission Main Page

A - Full Auto Mode

B - Custom Mode

C - Information and Settings Icon

D - ECO ON/OFF Toggle

E - Maximum Forward Speed

F - Maximum Reverse Speed

G - Custom Settings

H - Startup Gear Toggle

CommandQuad™ transmission offers two modes to get most fuel efficiency and load control from your tractor:

• Full Auto—Automatically adjusts minimum engine speed, allowing tractor to use most fuel efficient engine speed under light load. This mode automatically responds to loads created by use of hitch or SCVs (load anticipation). During PTO use, top engine speed is automatically limited to provide appropriate PTO speed.
• Custom—Operator can choose Auto Shift Engine Speed, ECO Engine Speed, or Load Anticipation reaction.

Press Transmission Shortcut Button on Navigation Bar or follow alternative path:

1. Select Menu.
2. Select Tractor Settings tab.
3. Select Transmission Icon.

Forward maximum speed (E) or reverse maximum speed (F) displays maximum forward or reverse speed limits. To change maximum speed, select appropriate maximum speed module. Max Speed Forward or Max Speed Reverse page appears. Use increase (+) or decrease (-) buttons to set maximum speed. If operator changes maximum forward or reverse speed below current set speed, set speed decreases to maximum speed and vehicle speed decreases.
