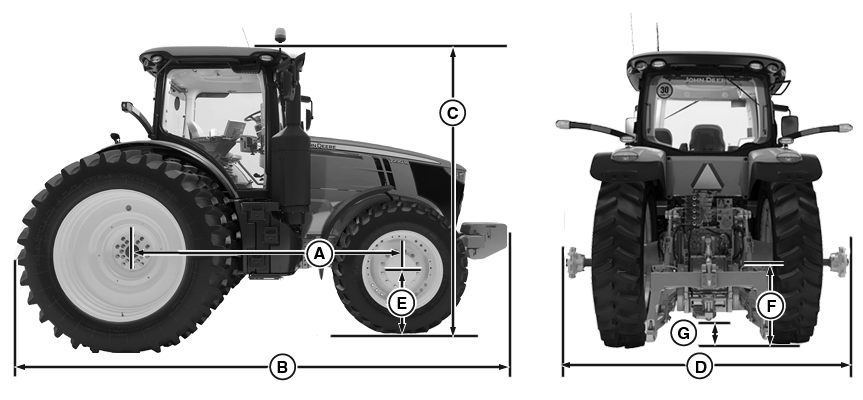

Overall Dimensions

RXA0134296-UN-26JUL13

	7210R	7230R	7250R	7270R	7290R	7310R
A - Wheelbase
MFWD Axles	2925 mm (115 in.)
B - Overall Length
Including front weight support, rear hitch, and excluding front suitcase weights	5520 mm (217 in.)			5540 mm (218 in.)
C - Overall Height (Top of Cab)
Group 47 Rear Tires	3245 mm (128 in.)
Group 48 Rear Tires	3357 mm (132 in.)
Group 49 Rear Tires	Not Available			3446 mm (136 in.)
D - Width (Axle Length)
Short Axle [100 mm (3.94 in.), 110 mm (4.33 in.), 120 mm (4.72 in.) Diameter]	2550 mm (100 in.)
Long Axle [100 mm (3.94 in.) Diameter]	2807 mm (110 in.)
Extra Long [100 mm (3.94 in.), 110 mm (4.33 in.), 120 mm (4.72 in.) Diameter]	3012 mm (119 in.)
E - Crop Clearance
MFWD With Group 42 Front Tires	612 mm (24 in.)
MFWD With Group 43 Front Tires	634 mm (25 in.)
MFWD With Group 44 Front Tires	Not Available			668 mm (26 in.)
F - Crop Clearance (Rear Axle Housing)
Group 47 Rear Tires	575 mm (23 in.)1
Group 48 Rear Tires	627 mm (25 in.)1
Group 49 Rear Tires	Not Available			673 mm (27 in.)
G - Drawbar Clearance
Group 47 Rear Tires	352 mm (14 in.)
Group 48 Rear Tires	420 mm (17 in.)
Group 49 Rear Tires	Not Available			463 mm (18 in.)
H- Overall Length (Including Hitch, Drawbar and Front Weight Support with no Front Weights)	5520 mm (217 in.)			5540 mm (218 in.)
I- Overall Length (Including Hitch, Drawbar, Front Weight Support and Front Weights)	5885 mm (232 in.)			5905 mm (232.5 in.)
Rear Axle Diameter	100 mm (3.9 in.)			110 mm (4.3 in) or 120 mm (4.7 in)
Ground Clearance (Front Axle, Off-Center, assuming 30 in. Rows)
MFWD/TLS Front Axle (Group 42 tires)	612 mm (24.1 in.)
MFWD/TLS Front Axle (Group 43 tires, 420/85R34)	634 mm (25.0 in.)
MFWD/TLS Front Axle (Group 44 tires, 420/85R38)	668 mm (26.3 in.)
Turning Radius (Centerline of Outside Front Tire, at 60” Treads)
MFWD Front Axle Without Oscillation Stops 420/90R30	7.0 m (22.9 ft.) @31° turn angle
MFWD Front Axle Without Oscillation Stops 380/85R34	6.5 m (21.3 ft.) @34° turn angle
MFWD Front Axle Without Oscillation Stops 420/90R30	5.2 m (17 ft.) @47° turn angle
