Come Home Mode

RXA0143345-UN-08JUL14

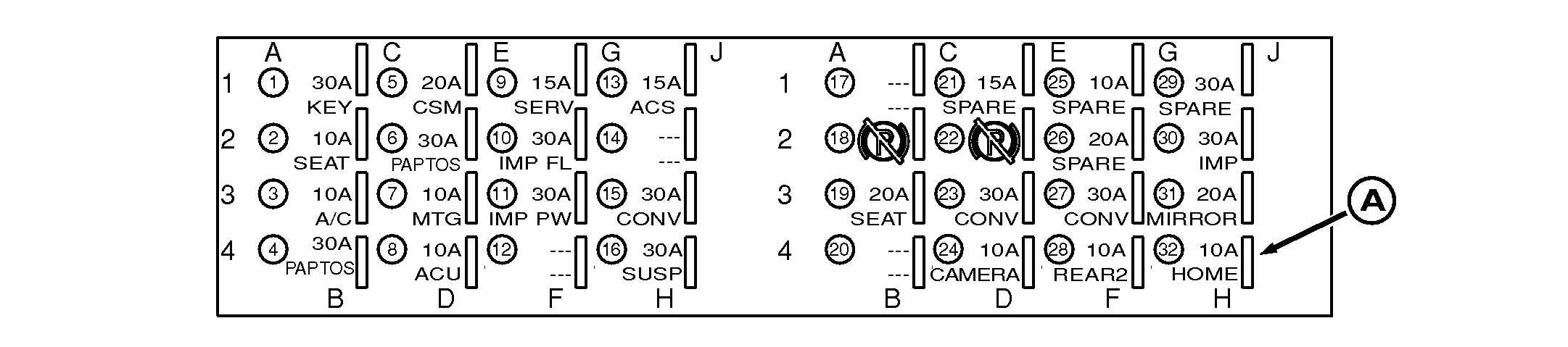

Fuse Panel

RXA0143341-UN-03JUL14

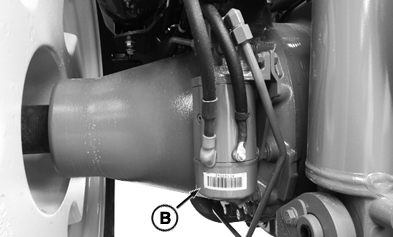

Back-up Pump

A - Fuse #32

B - Back-up Pump

CAUTION: When driving tractor in come home mode, do not exceed tractor limited capability.

If tractor is not equipped with back-up pump, steering and brakes will still function, but extra force will be required to operate these systems.

Come home mode may be used if tractor becomes inoperable due to failures and must be moved. In come-home mode, tractor can be moved short distances at reduced speeds and with limits on function:

• e23™ transmission — engine speed is limited to 1500 rpm and Efficiency Manager™ is disabled.
• For IVT™ /AutoPowr™ transmission — maximum tractor speed is limited to 5 km/h (3.1 mph).

If tractor is back-up pump equipped (B), when fuse #32 (A) is removed and tractor is placed in gear, back-up pump will provide pressure oil for brake and steering functions.

1. Remove fuse #32 (A) and retain.
2. “Transmission come home mode active” displays on CommandCenter™.
3. Turn key switch to START position.
4. Step on brake pedal momentarily.

5. CAUTION: Before operating tractor, verify correct operation of steering and brakes. In some situations braking may require additional force due to lower hydraulic pressure.

   Depress clutch pedal.
6. Select Forward or Reverse direction.
7. Release clutch pedal to put tractor in motion.
8. When destination is reached, put transmission shift lever in PARK position.
9. Turn key switch to OFF position.
10. Replace fuse #32.
