Drain Water Separator

1. NOTE: Water Separator removes water that has been accumulated in your fuel. If excessive water is found, draining of the fuel tanks may be required.


   RXA0133488-UN-02JUL13


   RXA0134208-UN-29JUL13

   Right Rear Side Shield


   RXA0134240-UN-31JUL13

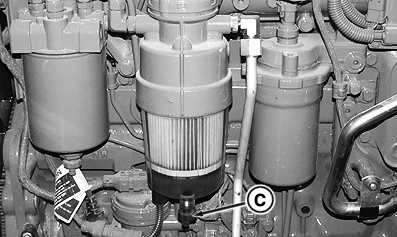

   Water Separator Drain Valve—6.8 L Shown


   RXA0109392-UN-10SEP10

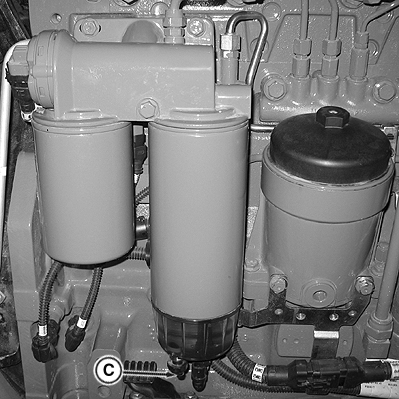

   Water Separator Drain Valve—9.0 L Shown

   A - Hood Release

   B - Latch Buttons

   C - Drain Valve

   Pull hood release (A) and raise hood.

---




2. Depress latch buttons (B) to remove right rear side shield.

3. Open drain valve (C) and drain accumulated water. Close drain valve.

4. Reinstall side shield and securely close hood.
