Lubricate Rear Hitch

IMPORTANT: Normal service is every 250 hours. If used daily, service every 50 hours.

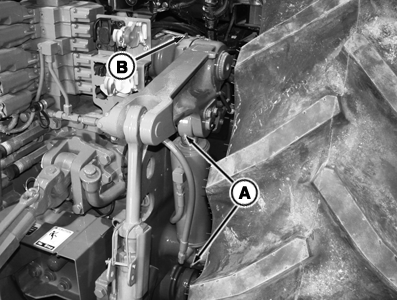

RXA0134286-UN-20AUG13

RXA0118612-UN-13JUL11

A - Lift Cylinders

B - Rockshaft

C - Lift Arms

D - Center Link

Lower hitch before lubricating hitch components.

Lubricate lift cylinders (A), rockshaft (B), and lift arms (C) located on both sides of tractor.

Lubricate mechanical center link (D).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants, and Coolant section.
