Lubricate Front Hitch (If Equipped)

IMPORTANT: Normal service is every 250 hours. If used daily, service every 50 hours.

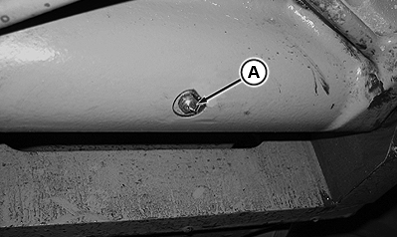

RXA0110637-UN-03SEP10

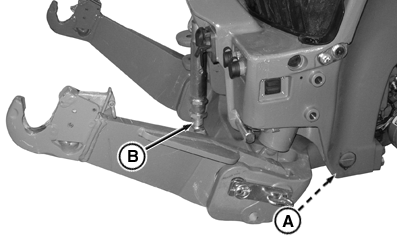

RXA0110655-UN-03SEP10

A - Pivot Point Grease Fitting

B - Center Link Threads

Grease main pivot point through grease fitting (A) underneath front hitch, and threads on center link (B).

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants, and Coolant section.
