Lubricate MFWD or TLS™ (If Equipped) Plus Kingpins, Tie Rod Ends, Steering Cylinder, Axle Pivot and Panhard Rod

IMPORTANT: Normal service is every 250 hours. In wet conditions service daily or every 10 hours.

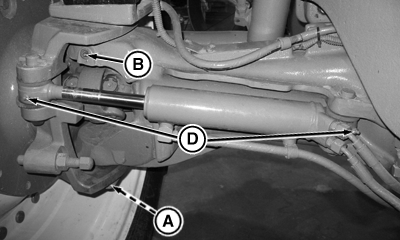

RXA0109431-UN-16AUG10

Kingpins and Steering Cylinder (Rear of MFWD)

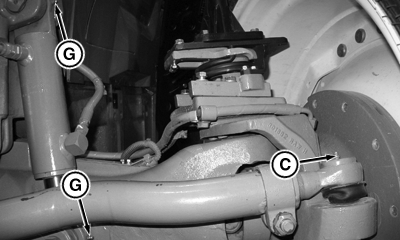

RXA0109440-UN-16AUG10

Tie Rods and Axle Cylinder (Front of MFWD)

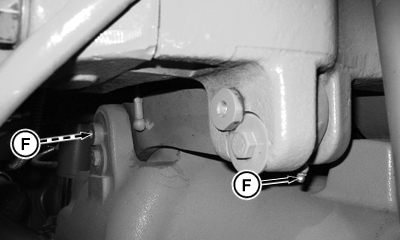

RXA0109442-UN-16AUG10

Panhard Rod (TLS Plus Only)

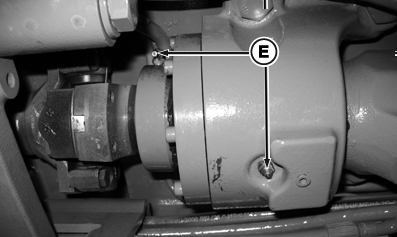

RXA0116166-UN-06MAY11

Axle Pivot (TLS Plus Only)

A - Kingpin Fittings, Bottom

B - Kingpin Fittings, Top

C - Tie Rod End Fittings

D - Steering Cylinder Fittings

E - Axle Pivot Fittings (TLS Plus Only)

F - Panhard Rod Fittings (TLS Plus Only)

G - MFWD Axle Cylinder Fittings (TLS Plus Only)

Kingpins—Lubricate fittings (A and B) until grease appears at orifice on bottom end of each kingpin bearing.

Tie Rods—Lubricate fittings (C).

Steering Cylinder—Lubricate fittings (D).

Axle Pivot—Lubricate front and rear fittings (E) (TLS Plus Only).

Panhard Rod —Lubricate left and right fittings (F) (TLS Plus Only).

Axle Cylinder—Lubricate top and bottom fittings (G) (TLS Plus Only).

NOTE: All fittings, except for axle pivot (E) and Panhard rod (F), are the same for the left and right sides.
