Clean Dual Beam Radar Sensor (If Equipped)

RXA0133518-UN-09JUL13

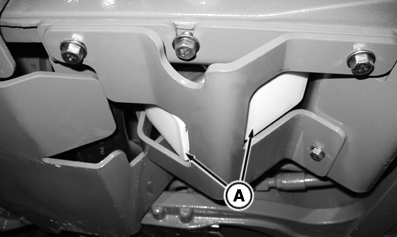

Dual Beam Radar, CommandQuad™ Transmission Shown

A - Radar Sensor

IMPORTANT: Inspect radar sensor horns for dirt or debris build up, which may affect accuracy performance. Service may be required more often in some operating conditions.

Avoid use of high pressure washer nozzle pointed directly at radar.

Avoid damage to radar and wiring harness when using sharp tools to remove dirt or packed mud around radar unit.

Dual beam radar sensor is located on bottom of transmission.

Check radar sensor (A) for damage.

Clean radar sensor with warm water and mild soap. Dry with clean soft cloth.
