Check Neutral Start System

RXA0130962-UN-14FEB13

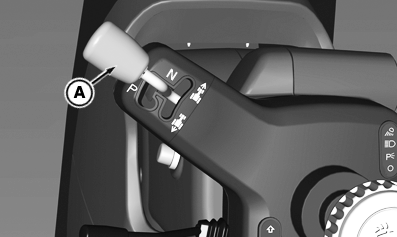

CommandQuad™ or e23™ Transmission Left-Hand Reverser

RXA0130963-UN-14FEB13

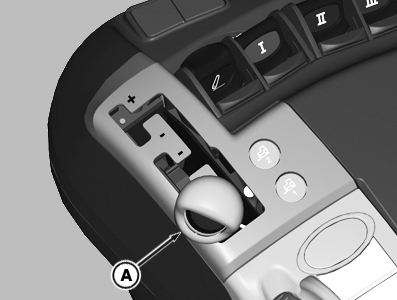

e23™ Transmission Right-Hand Reverser

RXA0130964-UN-14FEB13

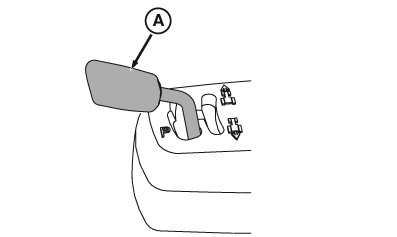

IVT™ /AutoPowr™ Left-Hand Reverser

RXA0130965-UN-14FEB13

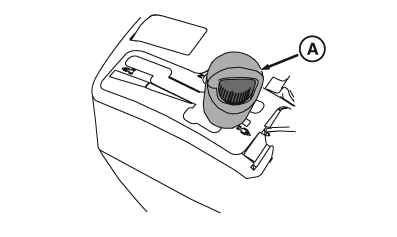

IVT™/AutoPowr™ Right-Hand Reverser

CAUTION: Avoid personal injury. Make sure that everyone is clear of tractor.

1. Park tractor on level ground.

2. Fully depress clutch and brake pedals.

3. Shut off tractor.

4. Move reverser lever (A) to any position except NEUTRAL or PARK position.

5. NOTE: Engine should start in NEUTRAL or PARK position only (depending upon transmission type).

   Attempt to start engine. If engine starts in any position other than NEUTRAL or PARK (depending upon transmission type), neutral start system should be repaired. See your John Deere™ dealer immediately.

Transmission Reverser Lever Position to Allow Tractor to Start
