Tighten Wheel and Wheel Weight Bolts

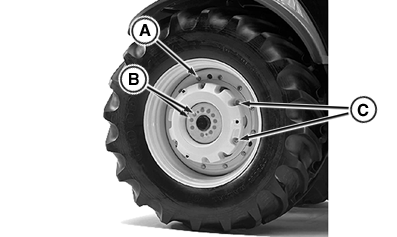

RXA0098559-UN-16JUN08

A - Rim to Wheel Bolts

B - Hub Bolts

C - Weight Bolts

CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel or wheel weight bolts. Failure to follow torquing procedure may result in personal injury. Wheel and wheel weight bolts are critical and require repeated torquing to assure secure tightness.

IMPORTANT: Failure to follow correct tightening procedure could result in equipment damage.

Tighten front and rear wheel bolts (A), hub bolts (B) and wheel weight bolts (C) using appropriate torquing procedures described below.
