Install Machine Communications Radio (MCR) Antenna (If Equipped)

NOTE: This antenna is only available for machines that have a factory installed Machine Communications Radio, John Deere Farmsight™ and MCR option. Refer to John Deere™ Machine Communications Radio for more information.

RXA0131714
RXA0131714-UN-15APR13

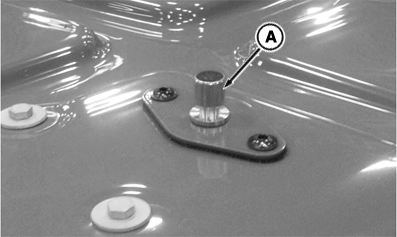

MCR Antenna Post

RXA0131715
RXA0131715-UN-15APR13

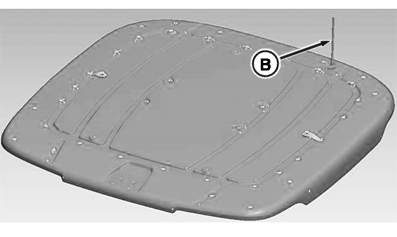

Connect MCR Antenna

A - MCR Antenna Post

B - MCR Antenna

  1. Remove antenna from storage under passenger seat.

  2. Remove cap from MCR antenna post (A) from rear left roof.

  3. Screw MCR antenna (B) onto MCR antenna post.

John Deere Farmsight is a trademark of Deere & Company
John Deere is a trademark of Deere & Company

SV81855,0000078-19-20131213
