7-Pin Outlet

RXA0126196-UN-05JUN12

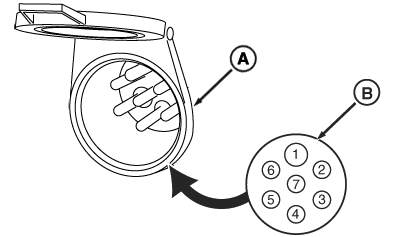

A - 7-Pin Outlet

B - Outlet Numbers

Rear-mounted 7-pin outlet (A) is used to connect lights, turn signals and other remote trailer or implement electrical equipment to tractor electrical system. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.

Contact your John Deere™ dealer for information on methods to connect tractor light switch with 7-pin connector accessory wires.

NOTE: Matching 7-pin plug is available through your John Deere™ dealer.

Outlet Numbers (B)	Function-Rear Connection	Function-Front Connection
1	Ground	Ground
2	Flood (Implement Lights)	Flood (Implement Lights)
3	Left Turn Signal	Left Turn Signal
4	Brake Lights	Not Used
5	Right Turn Signal	Right Turn Signal
6	Tail Light	Tail Light
7	Accessory	Not Used
