Steering Column Light Controls

RXA0142298-UN-09JUN14

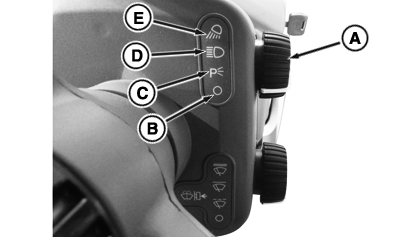

Steering Column Light Switch

CAUTION: Avoid injury or death caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim Road Lights to low-beam for oncoming vehicles. Avoid using Field Light position which could blind or confuse other drivers.

Promptly replace or repair damaged or lost lighting devices. See your John Deere™ dealer.

Control lights by using Selector Knob (A) on the steering column. Display indicates lighting mode selected (B-E).

A—Selector Knob: Turn knob to OFF, parking lights, road lights, or field lights position.
B—OFF Position: Use selector knob to turn lights OFF.
C—Parking Lights Position: Use selector knob to turn ON parking lights.
D—Road Lights Position: Use selector knob to turn road lights ON.
E—Field Lights Position: Use selector knob to turn field lights ON.
