Inspect Engine Air Intake System - 6.8 L Engine (Tier 2/Stage II)

IMPORTANT: To determine which engine your tractor is equipped with, see Record Engine Serial Number in Identification Numbers section of this Operator's Manual.

1.
   RXA0133488-UN-02JUL13


   RXA0134193-UN-25JUL13


   RXA0134212-UN-25JUL13

   Hose Clamp After Air Filter (Left Side of Engine)

   A - Hood Release

   B - Latch Buttons

   C - Clamp After Air Filter

   Pull hood release (A) and raise hood.

---




2. Depress latch buttons (B) to remove left rear side shield.

3. Remove battery compartment cover.

4. Tighten hose clamp (C) after air filter.

5.
   RXA0137811-UN-04FEB14

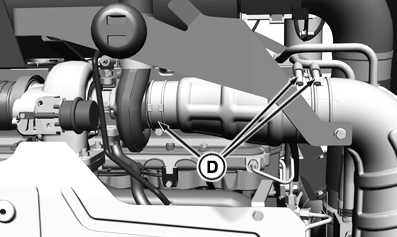

   Hose Clamps Before Turbocharger (Left Side of Engine)


   RXA0138965-UN-04FEB14

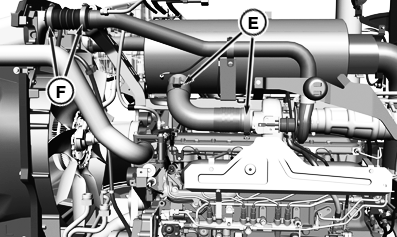

   Hose Clamps Before and After Turbochargers (Left Side of Engine)


   RXA0137812-UN-04FEB14

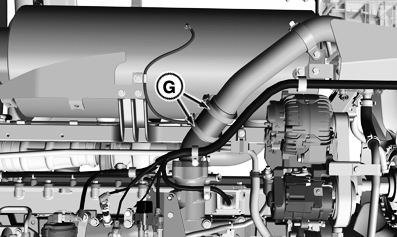

   Hose Clamps After Intercooler (Right Side of Engine)

   D - Clamps Before Turbocharger

   E - Clamps After Turbocharger

   F - Clamps Before Intercooler

   G - Clamps After Intercooler

   Tighten hose clamps before (D) and after (E) turbocharger.

---




6. Tighten hose clamps (H) before and after (I) intercooler.

   Item	Measurement	Specification
   Clamp After Second Turbocharger (G)	Torque	20 N·m (178 lb.-in.)

   Item	Measurement	Specification
   All Other Clamps (C, D, E, F,)	Torque	10 N·m (88 lb.-in.)

7. Close and secure hood and reinstall side shields.
