Replace Fan Belt

1.
   RXA0133488-UN-02JUL13


   RXA0134208-UN-29JUL13


   RXA0143146-UN-03JUL14

   A - Hood Release Loop

   B - Side Shield Latches

   C - Cap Screw

   D - Fan Drive Connector

   Pull hood release loop (A) and raise hood.

---




2. Depress side shield latches (B) and remove both front and rear side shields.

3. Remove cap screw (C) and disconnect fan drive connector (D).

4.

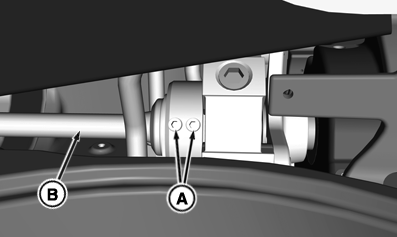

   RXA0136745-UN-13NOV13

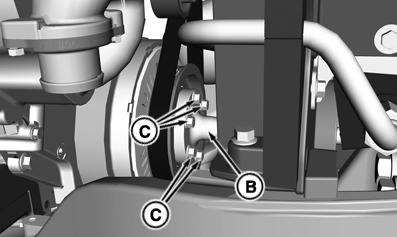

   RXA0136744-UN-13NOV13

   A - Front PTO Hub Set Screws (2 used)

   B - PTO Drive Shaft

   C - PTO Drive Shaft Cap Screws (6 used)

   For tractors equipped with front PTO, perform the following:
   • Rotate PTO drive shaft (B) using JDG820 Flywheel Rotation Tool and remove front PTO hub set screws (A).
   • Remove PTO drive shaft cap screws (C).
   • Slide PTO drive shaft (B) forward.



---




5.
   RXA0137540-UN-05DEC13

   A - Cap Screw

   B - Fan Drive Connector

   Remove cap screw (A) and disconnect fan drive connector (B).

---




6. NOTE: Fan drive belt is equipped with an automatic tensioner which does not require adjustment.


   RXA0136743-UN-13NOV13

   A - 1/2 in. Drive Breaker Bar

   B - Tensioner Pully

   Release tension on belt using 1/2 in. drive breaker bar (A) on tensioner pulley (B).

---




7. Remove belt.

8. Inspect parts and replace as necessary.

9.
   RXA0134221-UN-29JUL13

   6.8L Fan Belt Layout


   RXA0134220-UN-29JUL13

   9.0L Fan Belt Layout

   Install belt.

---




10. NOTE: Fan drive belt is equipped with an automatic tensioner which does not require adjustment.


    RXA0136743-UN-13NOV13

    A - 1/2 in. Drive Breaker Bar

    B - Tensioner Pully

    Release tension using 1/2 in. drive breaker bar (A) on tensioner pulley (B) and install belt around tensioner.

---




11.
    RXA0137540-UN-05DEC13

    A - Clamp Cap Screw

    B - Fan Drive Connector

    Connect fan drive connector (B) and install clamp cap screw (A). Tighten to specification.

    Item	Measurement	Specification
    Clamp Camp Screw	Torque	27.5 N·m (243 lb.-in.)

---




12.
    RXA0136744-UN-13NOV13


    RXA0136745-UN-13NOV13

    A - Front PTO Hub Set Screws (2 used)

    B - PTO Drive Shaft

    C - PTO Drive Shaft Cap Screws (6 used)

    For tractors equipped with front PTO, perform the following:
    • Slide PTO drive shaft (B) reward.
    • Rotate PTO drive shaft (B) using JDG820 Flywheel Rotation Tool and install PTO drive shaft cap screws (C). Tighten to specification.

      Item	Measurement	Specification
      PTO Drive Shaft Cap Screws	Torque	73 N·m (54 lb.-ft.)

    • Install front PTO hub set screws (A). Tighten to specification.

      Item	Measurement	Specification
      PTO Hub Set Screws	Torque	55 N·m (41 lb.-ft.)




---




13. Install front and rear side shields.

14. Lower hood.
