Check Engine Weep Hole

  1. RXA0133488
    RXA0133488-UN-02JUL13

    RXA0134193
    RXA0134193-UN-25JUL13

    RXA0134230
    RXA0134230-UN-29JUL13

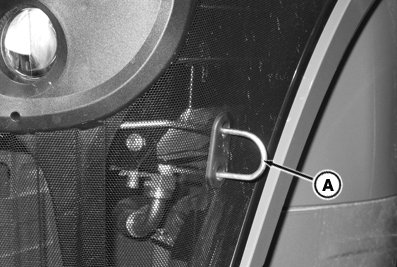

    A - Hood Release

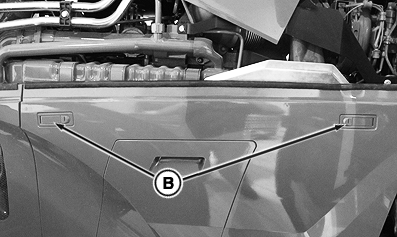

    B - Left Rear Latch Buttons

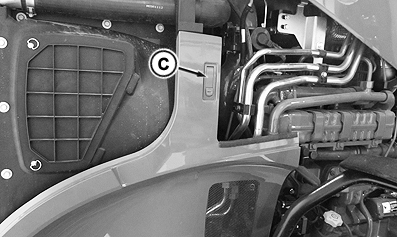

    C - Left Front Latch Button

    Pull hood release (A) and raise hood.
  2. Depress latch buttons (B) to remove left rear side shield.
  3. Depress latch button (C) to remove left front side shield.

  4. RXA0134196
    RXA0134196-UN-25JUL13

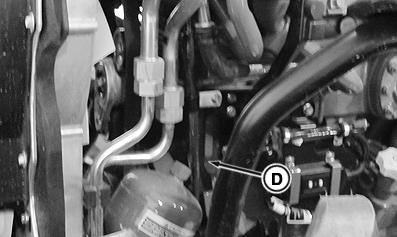

    Front Left Side of Engine - 9.0 L Shown

    RXA0134197
    RXA0134197-UN-25JUL13

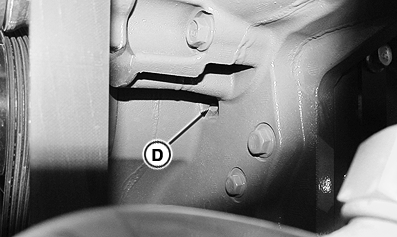

    Engine Weep Hole - 9.0 L Shown

    D - Weep Hole

    Inspect weep hole (D) for oil or coolant leakage.
  5. Close and secure hood and reinstall side shields.

If leakage is detected, see your John Deere™ dealer to replace complete coolant pump assembly (repair parts are not available).

  • Oil leakage indicates a damaged rear seal.
  • Coolant leakage indicates a damaged front seal.

John Deere is a trademark of Deere & Company

TO84419,000003F-19-20130816
