Check Engine Oil Level

RXA0134202
RXA0134202-UN-13AUG13

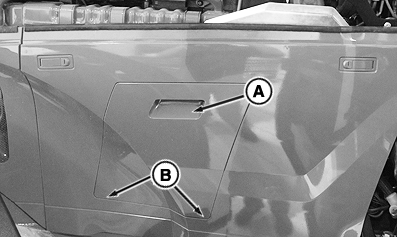

Engine Access Panel-Left Side

RXA0134278
RXA0134278-UN-13AUG13

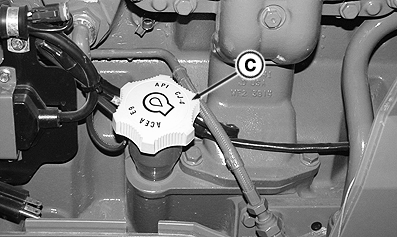

Oil Filler Cap

RXA0134279
RXA0134279-UN-13AUG13

RXA0109390
RXA0109390-UN-16AUG10

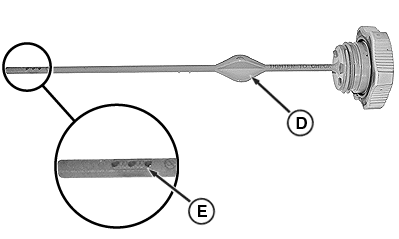

Oil Dipstick

A - Hand Grip Recess

B - Alignment Tabs

C - Filler Cap

D - Dipstick

E - Top of Crosshatch

  1. Park tractor on level ground. Stop engine and remove key.

  2. Remove engine access panel. Pull outward, using hand grip recess (A). Magnets secure top of panel. Lift panel from alignment tabs at bottom (B).

  3. IMPORTANT: Do not operate engine with oil level below ”ADD” mark on dipstick.

    NOTE: Fully tighten filler cap to check oil. Oil level at top of crosshatch area on dipstick is considered FULL.

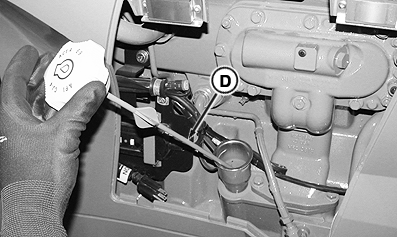

    Dipstick is attached to filler cap (C). Remove cap and clean dipstick. Retighten cap, then remove and check oil level on dipstick (D). Oil level should be between ”ADD” mark and top (E) of crosshatch area on dipstick.

  4. If needed, remove cap and add oil recommended in Fuel, Lubricants and Coolant section of this Operator’s Manual.

  5. Reinstall engine access panel.

TO84419,0000041-19-20130816
