Check Transmission PARK System

RXA0130966-UN-14FEB13

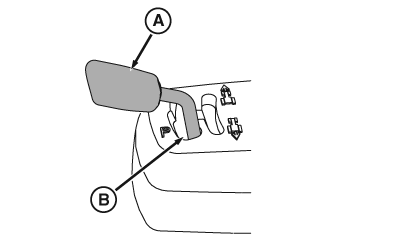

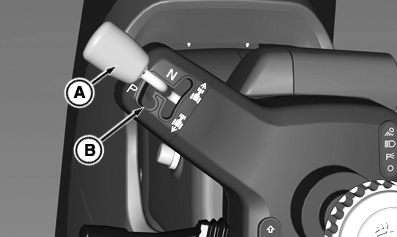

CommandQuad™ or e23™ Transmission Left-Hand Reverser

RXA0130967-UN-14FEB13

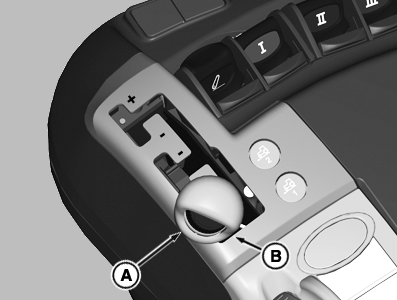

e23™ Transmission Right-Hand Reverser

RXA0130968-UN-14FEB13

IVT™ /AutoPowr™ Left-Hand Reverser

RXA0130969-UN-14FEB13

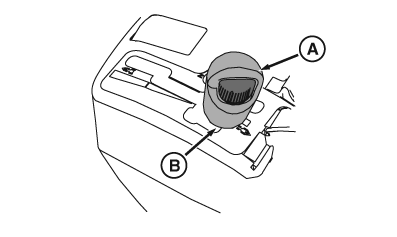

IVT™/AutoPowr™ Right-Hand Reverser

CAUTION: Avoid personal injury. Make sure that everyone is clear of tractor.

1. Position tractor on a 30% incline [1 m (3.3 ft.) vertically for every 3 m (9.8 ft.) horizontally] with front of tractor facing downward.
2. Move reverser lever (A) to PARK position (B).
3. If tractor does not hold stationary on incline with reverser lever in PARK position, transmission should be repaired immediately by your John Deere™ dealer.
