Tighten Rear Wheel Weight Bolts

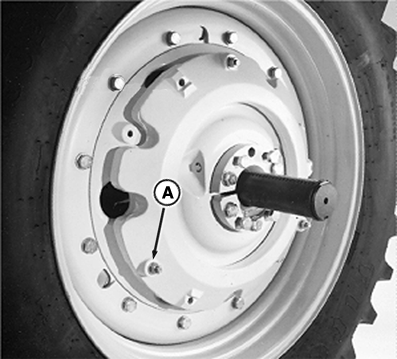

RXA0130316-UN-15JAN13

CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel weight bolts. Failure to follow torquing procedure may result in personal injury. Wheel weight bolts are critical and require repeated torquing to assure secure tightness.

IMPORTANT: Failure to follow tightening procedure could result in equipment damage.

Tighten all wheel weight bolts (A) until bolts maintain torque according to specifications.

Item	Measurement	Specification
Wheel Weight Attaching Bolts
M16 Bolt	Torque	310 N·m (230 lb.-ft.)
M20 Bolt	Torque	610 N·m (450 lb.-ft.)

Drive tractor approximately 100 m (100 yd.). Then check bolt torque and retighten until bolts maintain torque specification.

IMPORTANT: Keep wheel weight bolts tightened to specification. If tractor is operated with loose bolts, damage to equipment may occur.

Retighten bolts after working 3 HOURS, again after 10 HOURS and DAILY for first week of operation or until bolts do not move when retorqued.
