Tighten Front Wheel Bolts

RXA0130317-UN-15JAN13

CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts. Failure to follow torquing procedure may result in personal injury. Wheel bolts are critical to operation and require repeated torquing to assure secure tightness.

IMPORTANT: Failure to follow tightening procedure could result in equipment damage.

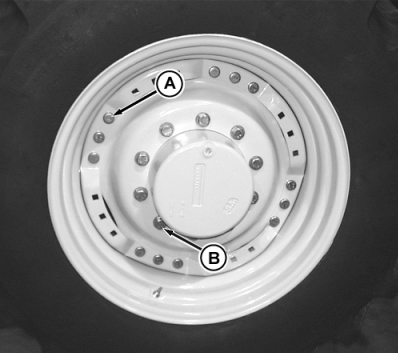

Tighten all wheel disk to rim (A) and wheel disk to hub (B) (eight-position and two-position wheels) bolts until bolts maintain torque according to specifications.

Item	Measurement	Specification
Front Wheel Bolts
Wheel Disk to Rim Bolts - 8-Position Wheel (M16 Hardware)	Torque	300 N·m (225 lb.-ft.)
Wheel Disk to Hub Bolts	Torque	600 N·m (445 lb.-ft.)

Drive tractor approximately 100 m (100 yd.). Then check bolt torque and retighten until bolts maintain torque specification.

IMPORTANT: Keep wheel bolts tightened to specification. If tractor is operated with loose bolts, damage to equipment may occur.

Retighten bolts after working 3 HOURS, again after 10 HOURS and DAILY for first week of operation or until bolts do not move when retorqued.
