Tighten Rear Wheel Bolts—Heavy-Duty Cast 10-Bolt Hubs

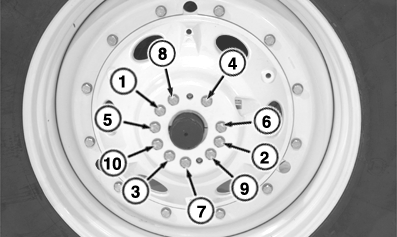

RXA0130320-UN-15JAN13

Heavy Duty Cast Drive Hub Shown

CAUTION: Avoid the possibility of personal injury. Never operate tractor with loose wheel bolts. Failure to follow procedure may result in personal injury. Wheel bolts are critical to operation and require repeated torquing to assure secure tightness.

IMPORTANT: Some bolts may loosen as sleeve is tightened. Repeat torquing sequence until ALL bolts maintain proper torque. Failure to follow procedure could result in damage to equipment.

Tighten wheel to hub bolts (1-10) to initial torque specifications - in numerical sequence shown - until torque is maintained.

Tighten bolts to final torque specifications - in numerical sequence - until torque is maintained.

Item	Measurement	Specification
Wheel to Hub Bolts
Initial	Torque	400 N·m (300 lb.-ft.)
Final	Torque	610 N·m (450 lb.-ft.)

Drive tractor approximately 100 m (100 yd.). Using numerical sequence, check bolt torque and retighten until final torque specification is maintained.

IMPORTANT: Keep wheel bolts tightened to specification. If tractor is operated with loose bolts, damage to equipment may occur.

Retighten bolts after working 3 HOURS, again after 10 HOURS and DAILY for first week of operation or until bolts do not move when retorqued.
