Clean Radiator, Coolers, and Air Conditioning Condenser

If tractor coolant temperature is excessive, or if debris is seen to be accumulating on cooling system components, clean components to help reduce excess temperatures.

  1. Stop engine and remove key.

  2. Clean grille and side screens using a brush.

  3. Pull hood release (A) and raise hood.

    RXA0133488
    RXA0133488-UN-02JUL13

    RXA0134193
    RXA0134193-UN-25JUL13

    RXA0134230
    RXA0134230-UN-29JUL13

    A - Hood Release

    B - Left Rear Latch Buttons

    C - Left Front Latch Button


  4. Depress latch buttons (B) to remove left rear side shield.

  5. Depress latch button (C) to remove left front side shield.

  6. RXA0134241
    RXA0134241-UN-12SEP13

    RXA0135406
    RXA0135406-UN-12SEP13

    RXA0135407
    RXA0135407-UN-12SEP13

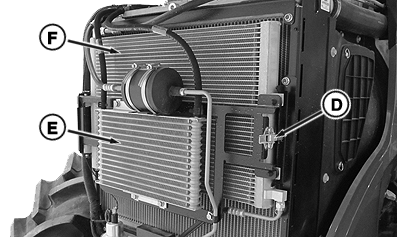

    D - Air Conditioning Condenser Latch

    E - Air Conditioning Condenser

    F - Engine Coolant Radiator

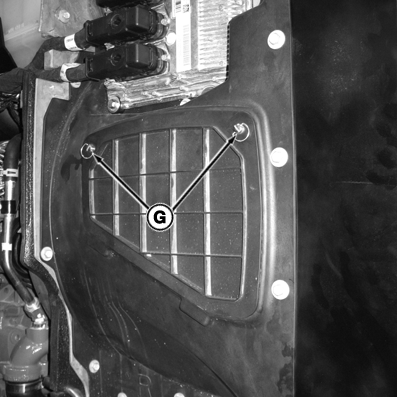

    G - Fan Shroud Service Door Latches

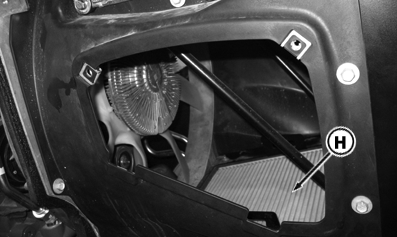

    H - Hydraulic Oil Cooler

    Release air conditioning condenser latch (D) on right side of air conditioning condenser (E) and pivot condenser and cooler forward and left.


  7. IMPORTANT: Directing pressurized water at electronic/electrical components or connectors, bearings and hydraulic seals, fuel injection pumps or other sensitive parts and components may cause product malfunctions. Reduce pressure, and spray at a 45 to 90 degree angle.

    Directing pressurized air at electronic/electrical components or connectors, may cause buildup of static electricity and product malfunctions.

    Use compressed air or water to clean air conditioning condenser. Straighten any bent fins.

  8. Release fan shroud service door latches (G) on either side of tractor.

  9. IMPORTANT: Directing pressurized water at electronic/electrical components or connectors, bearings and hydraulic seals, fuel injection pumps or other sensitive parts and components may cause product malfunctions. Reduce pressure, and spray at a 45 to 90 degree angle.

    Directing pressurized air at electronic/electrical components or connectors, may cause buildup of static electricity and product malfunctions.

    Use compressed air or water to clean hydraulic oil cooler (H) and engine coolant radiator (F). Straighten any bent fins.

  10. Reposition and secure components, shields, and hood.
