Bleed Trailer Hydraulic Brakes (If Equipped)

1. NOTE:

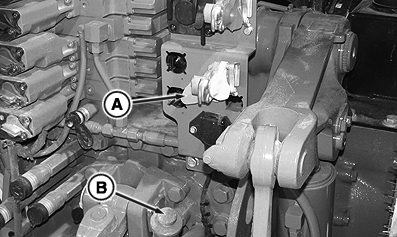

   RXA0134228-UN-26JUL13

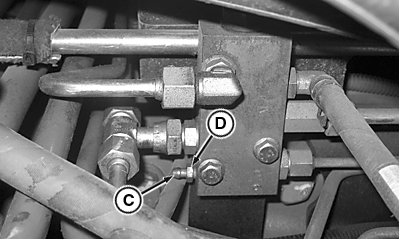

   RXA0111305-UN-14OCT10

   A - Hydraulic Trailer Brake Coupler

   B - Hydraulic Oil Filler Tube

   C - Bleed Valve Connection

   D - Bleed Valve Nut

   An assistant is needed to perform this procedure.

   Remove cap and connect a hose to hydraulic trailer brake coupler (A). Place other end of hose into hydraulic oil filler tube (B).

---




2. Loosen bleed valve nut (D).

3. Connect a hose onto bleed valve connection (C). Place other end of hose into hydraulic oil filler tube (B).

4. Start engine.

5. At slow idle, depress brake pedals for approximately 2 minutes.

6. Tighten bleed valve nut (D) with brake pedals depressed.

7. Shut off engine and remove key.

8. Remove hoses and install hydraulic oil filler tube cap.
