Select Radio Source With Generation 4 CommandCenter™

RXA0133718-UN-16JUL13

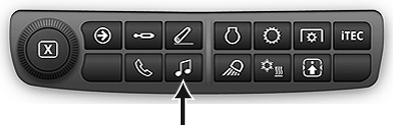

Audio Shortcut Button on Navigation Bar

RXA0125933-UN-13SEP12

Menu → Tractor Settings Tab → Audio Icon

RXA0132517-UN-15MAY13

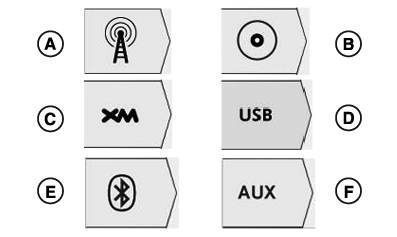

Source Select Tabs

A - FM, AM, and Weather Tab

B - CD/MP3 Tab (Premium Radio Only)

C - XM Tab (Premium Radio Only)

D - USB Tab (Premium Radio Only)

E - Bluetooth® Audio Tab (Premium Radio Only)

F - Auxiliary Tab

To access audio main page, use the shortcut button or follow alternative path:

1. Select Menu.
2. Select Tractor Settings tab.
3. Select Audio icon.

NOTE: Selecting radio source will not turn radio ON. Turn radio ON by pressing ON/OFF button on radio faceplate.

Use source select tabs in audio page to access different audio sources. Radio must be turned ON by using ON/OFF button on radio faceplate. If radio is not ON, display will show grayed out screen.
