Replace Cab Recirculation Air Filter

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow instructions in implement Operator's Manual and those given by chemical manufacturer when using agricultural chemicals.

IMPORTANT: Replacement interval can vary according to operating conditions. Normal service is 1000 hours or annually, whichever occurs first.

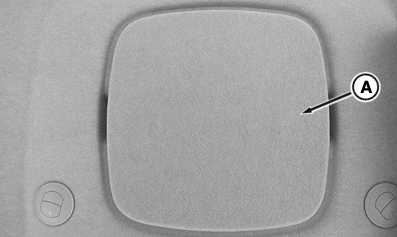

RXA0134243
RXA0134243-UN-31JUL13

Remove Roof Upholstery

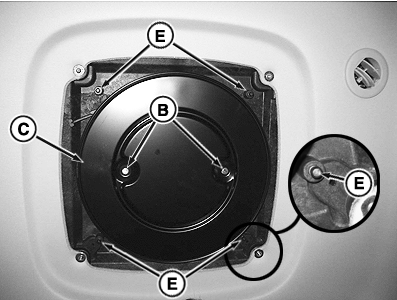

RXA0100957
RXA0100957-UN-17MAR09

Remove Cover

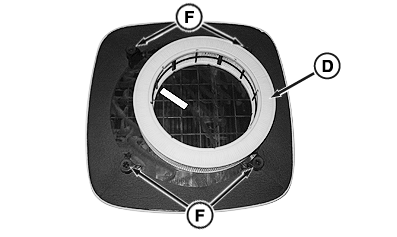

RXA0100959
RXA0100959-UN-17MAR09

Remove Filter

A - Upholstery Cover

B - Fasteners

C - Cover

D - Filter

E - Ball Studs

F - Clip Nuts

  1. Remove upholstery cover (A) in headliner by grasping outer edges and pulling down.

    NOTE: When removing fasteners (B), hold cover (C) in place with one hand.

  2. Remove fasteners allowing cover to be lowered.

  3. Using a clean cloth, wipe down inside and outside of filter cover before installing new filter.

  4. Remove filter (D) and inspect condition.

  5. Replace filter when plugged or damaged.

  6. Install cover (C) and tighten fasteners (B).

  7. Install upholstery cover by lining up ball studs (E) with clip nuts (F) and firmly push up.

TO84419,0000087-19-20130829
