Replace Cab Fresh Air Filter

RXA0099137-UN-19SEP08

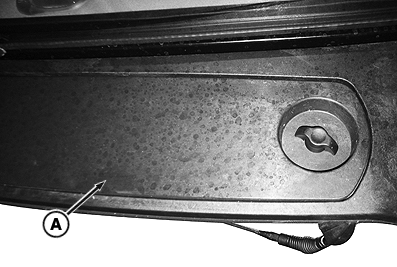

Let Cover Swing By Turning Knob

RXA0099139-UN-19SEP08

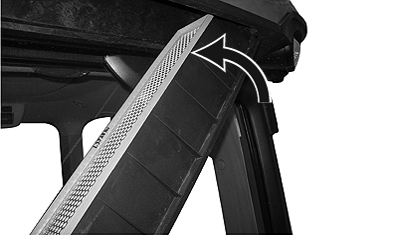

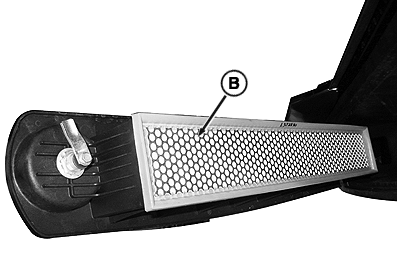

Remove Filter

RXA0099699-UN-04NOV08

A - Cover

B - Air Filter

CAUTION: Cab air filters are not designed to filter out harmful chemicals. Follow instructions in implement Operator's Manual and those given by chemical manufacturer when using agricultural chemicals.

IMPORTANT: Replacement interval can vary according to operating conditions. Normal service is 1000 hours or annually, whichever occurs first.

1. Support cover, then turn knob allowing cover (A) to swing down.

2. Using a clean cloth, wipe down inside and outside of filter cover before replacing old filter.

3. Remove old filter (B).

4. Inspect condition of filter.

5. Replace filter if plugged or damaged.

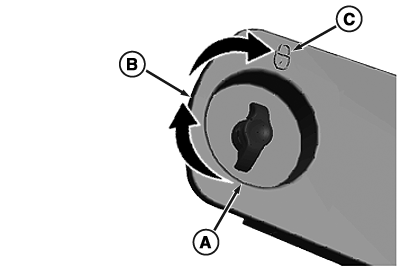

   NOTE: Filter cover latch has three positions; open (A), latched (B) and locked (C).


   RXA0099848-UN-26NOV08

   Air Filter Cover

   A - Open Position

   B - Latched Position

   C - Locked Position

---




6. Close cover and turn knob 180° to securely lock latch.
