Replace Open Crankcase Ventilation Filter (6.8 L Engine Only)

NOTE: To determine which engine your tractor is equipped with, see Record Engine Serial Number in Identification Numbers section of this Operator's Manual.

1.
   RXA0133488-UN-02JUL13


   RXA0134208-UN-29JUL13


   RXA0134226-UN-26JUL13


   RXA0134239-UN-31JUL13

   Open Crankcase Ventilation Filter

   A - Hood Release

   B - Right Rear Latch Buttons

   C - Right Front Latch Button

   D - Filter Lid

   E - Filter Housing

   Pull hood release (A) and raise hood.

---




2. Depress latch buttons (B) and remove right rear side shield.

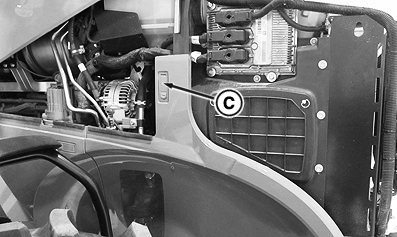

3. Depress latch button (C) and remove right front side shield.

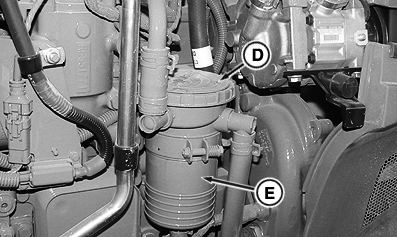

4. Remove filter lid (D).

5. Remove open crankcase ventilation filter from inside of filter housing (E).

6. To install new filter, align tabs on new filter with tabs on inside of filter housing.

7. Replace lid and hand tighten.

8. Reinstall front and rear side shields and close and secure hood.
