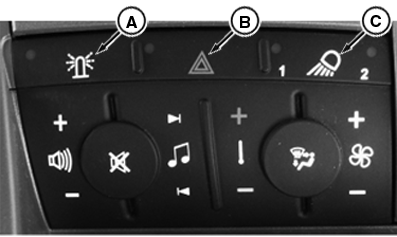

CommandARM™ Light Buttons

RXA0142355-UN-10JUN14

CommandARM™ Buttons

A - Beacon Lights

B - Hazard Lights

C - Field Lights 1 and Field Lights 2 Toggle Button

NOTE: Field Lights must be adjusted using the Generation 4 CommandCenter™ display.

Operator can control beacon lights (A), hazard lights (B), and field lights (C) from the CommandARM™ rather than from display screens. When lights are on, an LED light is lit up. When off, the LED light is dark. Field Lights 1 and Field Light 2 Toggle button has two LED lights, one for Field Lights 1 and another for Field Lights 2. Appropriate LED light lights up when selected.
