Configurable Lights

CAUTION: Avoid injury or death caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim Road Lights to low-beam for oncoming vehicles. Avoid using Field Light position which could blind or confuse other drivers.

Promptly replace or repair damaged or lost lighting devices. See your John Deere™ dealer.

RXA0133717-UN-16JUL13

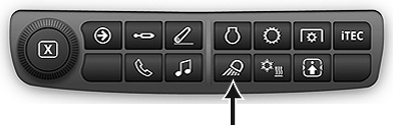

Lights Shortcut Button on Navigation Bar

RXA0130624-UN-05FEB13

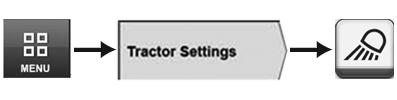

Menu → Tractor Settings Tab → Lights Icon

RXA0137115-UN-05DEC13

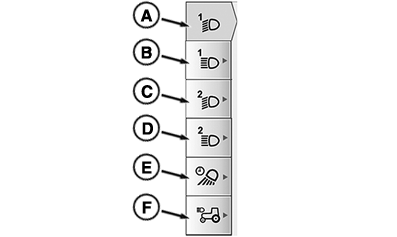

Lights Page Selection Tabs

RXA0137114-UN-05DEC13

CommandCenter™ Light Controls

To access Lights page, use shortcut buttons or follow alternative path:

1. Select Menu
2. Select Tractor Settings tab.
3. Select Lights icon.

When Lights page is displayed, operator can select left side tabs (A-F).

NOTE: Lights page will temporarily show when selector knob transitions from OFF position to the road lights or field lights position.

A—Field 1 Low Beam
B—Field 1 High Beam
C—Field 2 Low Beam
D—Field 2 High Beam
E—Exit Lighting
F—Hood/Beltline Light (If Equipped)

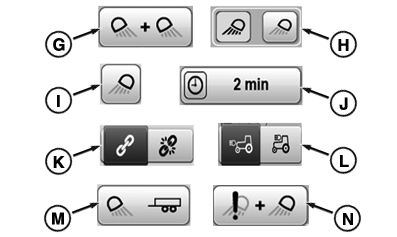

Following buttons can be used by operator to configure lights.

G—Linked Lights: Lights linked or paired together that can be unlinked.
H—Unlinked Lights: Unlinked light pair that can be linked.
I—Paired Lights: Light pair that is always linked.
J—Exit Light Timeout: Allows operator to select how long selected lights remain ON after light selector knob is turned to OFF position.
K—Link/Unlink: Press toggle to link and unlink lights on all pages.
L—Hood/Loader Road Light Toggle: Press to toggle road lights between hood and loader lights position. Feature is only available when light knob is in road mode and tractor is equipped with hood/beltline lights.
M—Implement Lights: Press to activate implement lights. Implement light button only available if there are no fender work lights. If there are fender work lights, implement lights will be controlled by fender work lights button.
N—Light with Fault: Exclamation point indicates light is in error. Example, light bulb is burnt out.
