Lubricate MFWD or TLS™ Plus (If Equipped) U-Joints

IMPORTANT: Normal service is every 250 hours. If used in extremely wet conditions service daily or every 10 hours.

RXA0109446
RXA0109446-UN-16AUG10

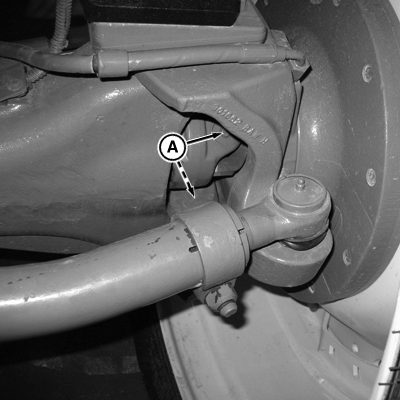

Hub U-joint Lubrication Points

A - Lubrication Points

Use John Deere™ SD Polyurea grease or other grease as specified in Fuel, Lubricants, and Coolant section of this Operator’s Manual.

Drilled passages in the U-joint allow grease to reach all four bearings from a single grease fitting.

For normal operations, U-joints are sealed and not permanently equipped with grease fittings. To lubricate proceed as follows:

  1. Replace plugs with M10 thread 90° grease fittings. See your John Deere ™ dealer for correct part.
  2. Apply grease to both U-joints at lubrication points (A).

    ItemMeasurementSpecification
    PlugTorque0.904 N·m (8 lb.-in.)
