Exit Lights

RXA0130625-UN-20FEB13

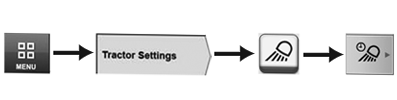

Menu → Tractor Settings Tab → Lights Icon →Exit Lighting Tab

RXA0143008-UN-25JUN14

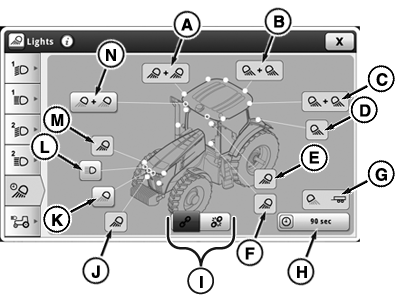

Lights Page (Exit Lights)

RXA0137119-UN-05DEC13

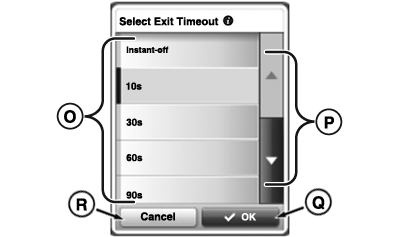

Exit Time Selection

A - Front Side Roof Lights Button

B - Rear Inner Roof Lights Button

C - Rear Side Roof Lights Button

D - Rear Fender Lights Button

E - Loader/Road Lights (Low and High Beams) Button

F - Beltline Lights Button

G - Implement Lights Button (If Equipped)

H - Exit Light Timeout Button

I - Link/Unlink Toggle

J - Low Beam Road Lights Button

K - Inner Hood Lights Button

L - High Beam Road Lights Button

M - Outer Hood Lights Button

N - Front Inner Roof Lights Button

O - Time Selection Interval List

P - Scroll Bar

Q - OK Button

R - Cancel Button

Programming exit lighting allows operator to select which lights will remain on and for how long they will remain on after light selector knob is turned to OFF position.

Field exit lighting is all lights chosen on exit lighting page and will be activated for time selected for the Exit Timeout. Field exit lighting will be enabled when light switch has been in “Field” position for at least 10 seconds during the current key switch cycle. Field exit lighting will then be activated when light switch and key switch are turned off. The order which light switch and key switch are turned off do not matter.

Road exit lighting is the low beam road lights only and will be activated for time selected for Exit Timeout. Road exit lighting will be enabled when light switch has been in “Road” position for at least 10 seconds during current key switch cycle. Road exit lighting will then be activated when light switch and key switch are turned off. The order which the light switch and key switch are turned off do not matter.

1. Select Menu.
2. Select Tractor Settings tab.
3. Select Lighting icon.
4. Select Exit Lighting tab.
5. Select desired lights and deselect unwanted lights. Use Link/Unlink Toggle (I) if operator wishes to select a set (linked) or only select the right or left light in a set (unlinked) where applicable. Lights D-G and J-M are always linked and will always select both the left and right lights.
6. Select Exit Light Timeout button (H).
7. When options appear, select desired time interval (O) for when lights automatically turn OFF and select OK button (Q).

NOTE: Not all possible lights for programmable exit lighting are shown. Lights available are dependent on tractor configuration.
