Operating Turn Signals and High/Low Beam

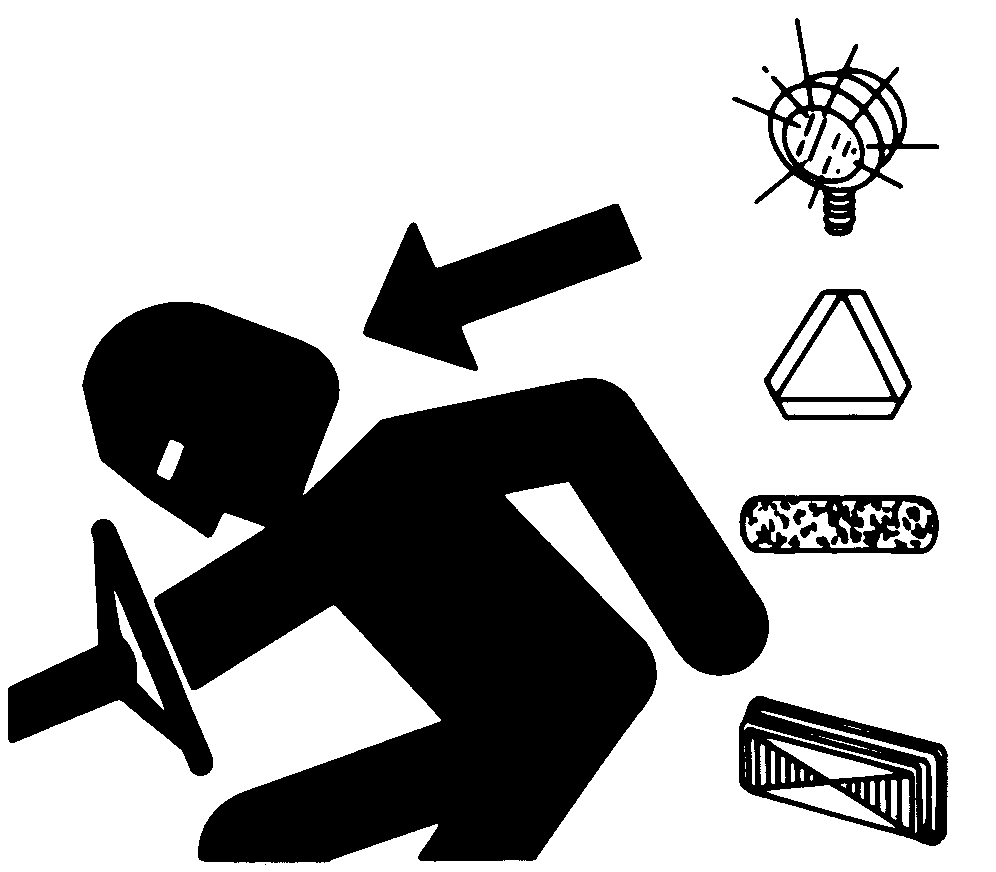

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from rear, especially in turns, and use turn signal lights.

TS951-UN-12APR90

RXA0126178-UN-29OCT12

A - Turn Signal Lever

Use headlights and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible, clean, and in good working order. Replace or repair lighting and marking that has been damaged or lost. See your John Deere™dealer.

NOTE: When turn signal is activated, a short audible chirping sound will be heard.

Turn Signals:

Push turn signal lever (A) up for right turn, or pull down for left turn. Audible chirping sound will start. Return lever to center position after completing turn, chirping sound will stop when lever is returned to position.

High/Low Beam:

Push lever (A) forward to activate high beam headlights; high beam indicator comes on. Pull lever into center position to operate low beam. Pull lever rearward and release to momentarily activate high beams.

Dim road lights to low beam for oncoming vehicles.
