Adjust Heated Leather Seat (If Equipped)

RXA0136445-UN-30OCT13

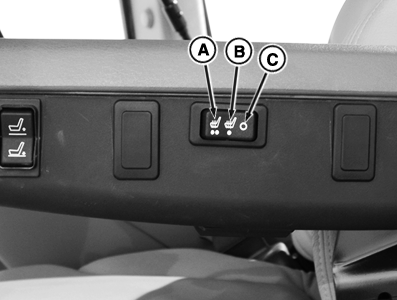

Heated Leather Switch Left-Hand Armrest

Heated seat provides three settings for increased comfort during cold days. Heat is controlled by left armrest switch. Three settings are available. When tractor is shut off, seat also turns off, or after one hour of use heater automatically turns off.

To control system:

A—High Setting - Press switch forward.

B—Low Setting - Press switch to middle position.

C—OFF - Press switch rearward.
