Using Instructional Seat

RXA0107055-UN-01APR10

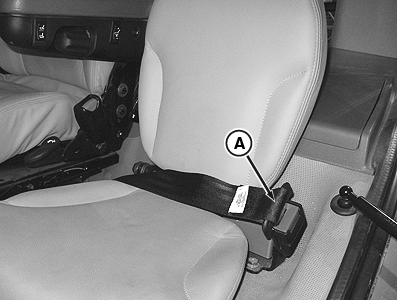

Instructional Seat

RXA0107057-UN-03JUN10

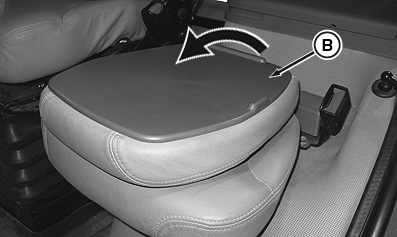

Instructional Seat Converted To Writing Surface

RXA0107061-UN-01APR10

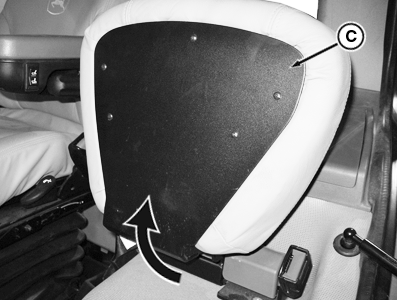

Instructional Seat Folded Up For Easier Egress

A - Seat Belt

B - Writing Surface

C - Flip Up Seat

CAUTION: Instructional seat is provided only for training operators or diagnosing machine problems. Keep all other riders off tractor and equipment. Always wear seat belt (A).

Instructional seat back tilts forward to be used as writing surface (B). Seat flips up (C) to allow easier entrance and egress.
