Operate Front Wiper and Washer

RXA0142299
RXA0142299-UN-09JUN14

RXA0133281
RXA0133281-UN-18JUN13

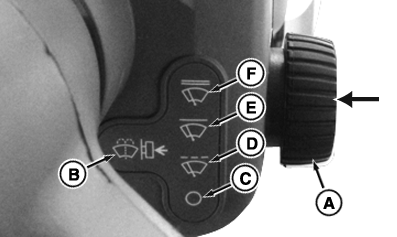

A - Front Wiper/Washer Knob

B - Washer Icon

C - Off

D - Intermittent Speed

E - Slow Speed

F - Fast Speed

G - Front Washer Reservoir

Wiper/washer knob (A) has four positions:

  • OFF
  • Intermittent Operation
  • Slow Speed
  • Fast Speed

Push knob in to operate front washer.

NOTE: Front washer reservoir supplies rear and right hand wipers and washers (if equipped).

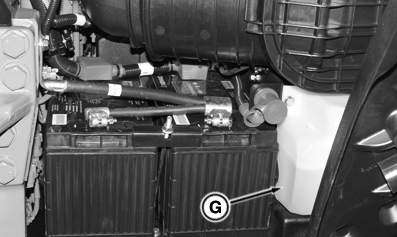

Front washer reservoir (G) is behind battery compartment cover. Fill reservoir with a washer fluid. In cold climates be sure to fill with non-freezing windshield washer fluid.

TO84419,00000A5-19-20140625
