Mount StarFire™ Receiver

CAUTION: Falling while installing or removing global positioning receiver can cause serious injury. Use ladder or platform to easily reach mounting location.

Use sturdy and secure footholds and hand holds. Do not install or remove receiver in wet or icy conditions.

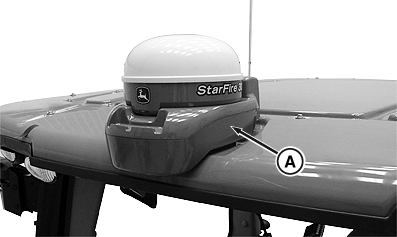

RXA0107026-UN-31MAR10

StarFire™ Receiver Mounted on StarFire™ Receiver Bracket

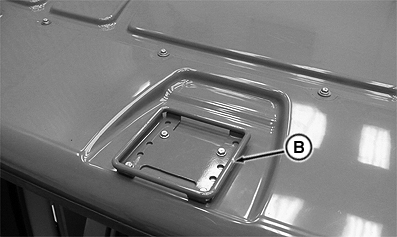

RXA0107027-UN-31MAR10

StarFire™ Receiver Bracket

A - StarFire™ Receiver

B - StarFire™ Receiver Bracket

Mount StarFire™ receiver (A) on StarFire™ receiver bracket (B).

NOTE: Refer to your John Deere™ dealer or to StarFire™ receiver installation instructions for compatibility.

See your John Deere™ dealer for compatible adapter harnesses.
