Monitor Bracket Mounts

RXA0126731
RXA0126731-UN-07JUN12

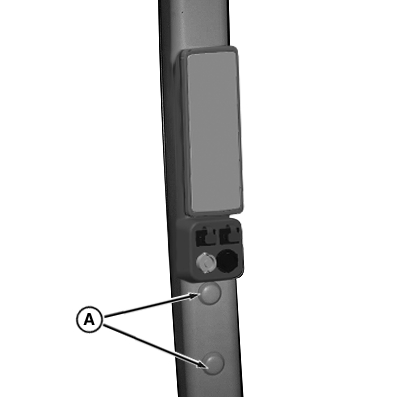

Front Corner Post Mounting Points

RXA0100908
RXA0100908-UN-06MAR09

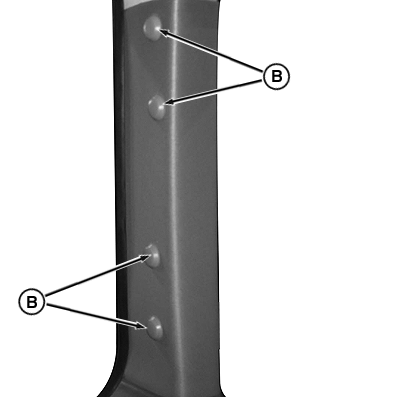

Rear Corner Post Mounting Points

A - Front Corner Post Mounting Points

B - Rear Corner Post Mounting Points

Front corner post mounting points (A) and rear corner post mounting points (B) are used to connect implement monitors to cab using M10 cap screws. See your John Deere™ dealer for brackets that utilize these mounting points.

John Deere is a trademark of Deere & Company
