Use Telescoping Heated Electric Mirror (If Equipped)

RXA0142300-UN-09JUN14

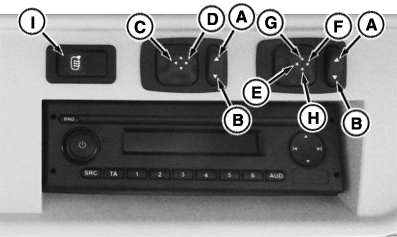

Rear-View Mirror Switch

RXA0100486-UN-06MAR09

Telescoping Electrical Rear-View Mirror (Right-Hand Side Shown)

A - Selection Switch—Right Mirror

B - Selection Switch—Left Mirror

C - Extend

D - Retract

E - Angle Left

F - Angle Right

G - Tilt Up

H - Tilt Down

I - Heating Switch

J - Telescoping Arm

K - Mirror

1. Select right (A) or left (B) mirror.

2. Push adjustment switch to extend (C) or retract (D).

3. Push adjustment switch to tilt mirror up (G) or down (H).

4. Push adjustment switch to angle mirror left (E) or right (F)

Pressing heating switch (I) turns mirror heating on or off. When heat is on, switch is illuminated. Heating will continue until it is switched off or key switch is turned off. If heating switch is not manually turned off, mirror heating will restart when key switch is turned to accessory or ON position.
