Position Left-Hand Steps

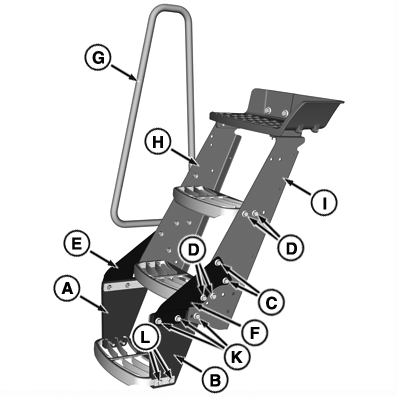

RXA0131506-UN-10SEP13

Wide Steps and Hand Rails—Tractors Equipped With Group 47/48 Tires

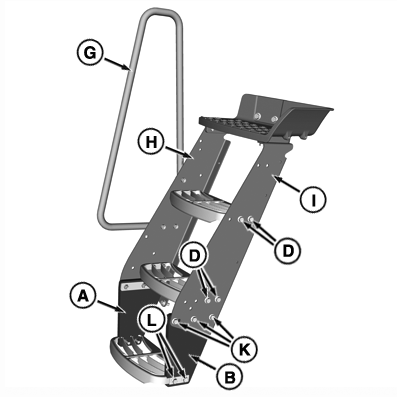

RXA0131470-UN-10SEP13

Narrow Steps and Hand Rails—Tractors Equipped With Group 47/48 Tires

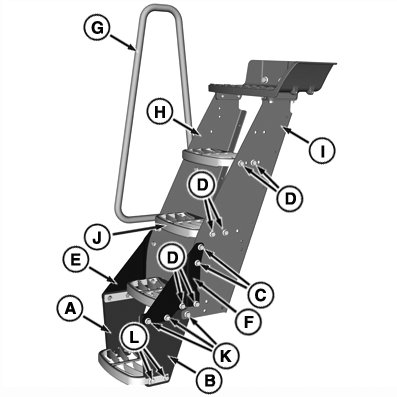

RXA0131508-UN-10SEP13

Wide Steps and Hand Rails—Tractors Equipped With Group 49 Tires

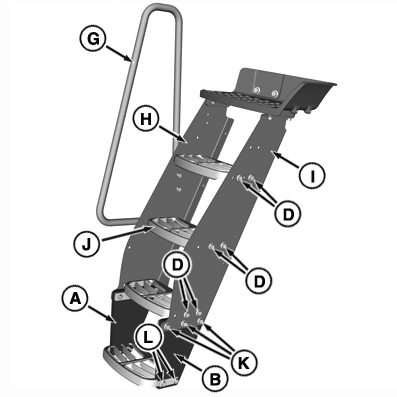

RXA0131507-UN-10SEP13

Narrow Steps and Hand Rails—Tractors Equipped With Group 49 Tires

A - Lower Side Panel 1

B - Lower Side Panel 2

C - Panel Positioning Bolts

D - Step Positioning Bolts

E - Side Bracket 1 (Wide Steps Only)

F - Side Bracket 2 (Wide Steps Only)

G - Handrail

H - Upper Side Panel 1

I - Upper Side Panel 2

J - Middle Step (Group 49 Tires Only)

K - Carriage Bolts

L - Cap Screws

NOTE: Step assembly can be adjusted to either wide or narrow position. For wide positioned steps, use round holes in upper and lower side panels. For narrow steps, use square holes in upper and lower side panels.

Remove steps by removing bolts (D, L).

Remove lower side panels 1 and 2 (A, B) by removing bolts (K) on both sides of step assembly.

To switch from wide position to narrow position, side brackets (E, F) need to be removed, and the lower side panels (A, B) need to be shifted into narrow position as shown.

To switch from narrow position to wide position, attach side brackets 1 and 2 (E, F) to lower and upper side panels (A, B, H, I). Side brackets must be ordered through a dealer for tractors shipped from factory with narrow steps (refer to figure on previous page).

Use bolts (D, L) to adjust individual steps to match step assembly width.

NOTE: Upper side panels (H, I) do not have to be removed to change step positions.

On tractors equipped with Group 49 tires, positioning bolts for middle step (J) are also used to hold handrail (G) in place.

After correctly positioning steps and handrail, tighten cap screws to specified torque.

Part	Part Number
Group 48 Side Bracket 1 (E)	R542430
Group 48 Side Bracket 2 (F)	R542429
Group 49 Side Bracket 1 (E)	R543230
Group 49 Side Bracket 2 (F)	R542654

Item	Measurement	Specification
Panel and Step Positioning Bolts (C, D)	Torque	55 N·m (41 lb-ft)
Carriage Bolts (K)	Torque	15 N·m (11 lb-ft)
Cap Screws (L)	Torque	37 N·m (27 lb-ft)
