Right-Hand Service Steps

RXA0137121-UN-11DEC13

RXA0137123-UN-11DEC13

A - Upper Step

B - Middle Pivoting Steps

C - Bottom Extendable Step

D - Bottom Step Handhold Slot

E - Lock Pin

CAUTION: Exhaust and muffler may be very hot. Do not use right side steps to access front step.

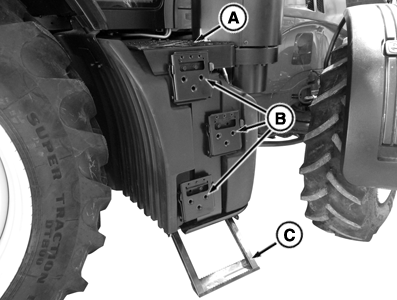

Fixed upper step above right fuel tank (A) allows access to right side of cab for service. Three pivoting middle steps (B) and one bottom extendable step (C) provide access to upper step.

Three middle steps (B) pivot into position. Pull down on step to position. When done using step, lift up, step will latch into place. Bottom step (C) slides under fuel tank when not in use.

CAUTION: To avoid injury, use handhold slot (D) on lowest right-hand step to lower and raise step.

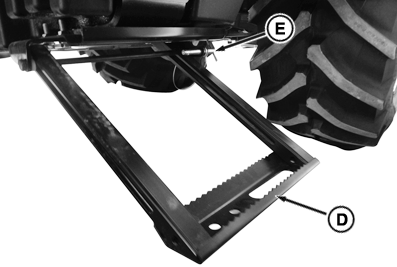

To extend bottom step, pull lock pin (E) forward until completely removed from step support. Grasp step using handhold slot (D) and pull outward and down until completely extended. Fully insert lock pin (E) in step support to secure bottom step when in stored position.

Retract and securely store all middle and lower steps when not in use. Use handholds to move steps.
