Triple Link Suspension Plus (TLS™ Plus) Front Axle Suspension (If Equipped)

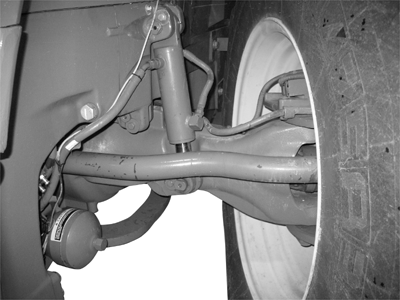

RXA0110327-UN-13SEP10

TLS™ Plus

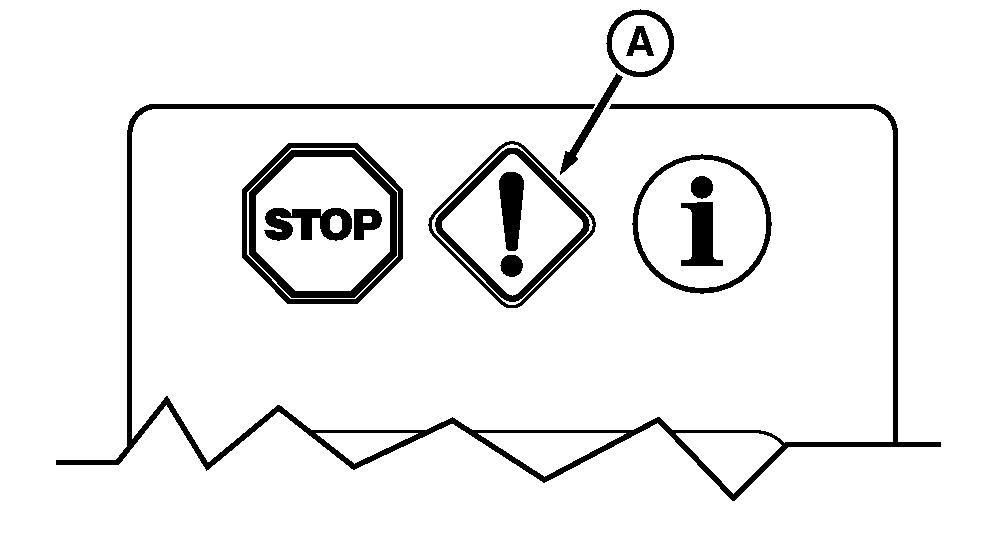

RXA0068147-UN-22JUN03

A - Service Alert Indicator

TLS™ Plus Front Axle Suspension provides suspension for tractor front end using hydro-pneumatic self leveling system. TLS™ Plus can operate simultaneously, yet independently from Load/Depth Control and Hitch Dampening.

Operating Characteristics

CAUTION: Avoid possible injury. Always make sure transmission is in Park position when working in area of TLS™ Plus MFWD.

IMPORTANT: Check for adequate clearance with TLS™ Plus system when attaching front mounted implement.

When tractor is stopped or moving faster than 0.5 km/h (03 mph),TLS™ Plus automatically levels when placing transmission in gear or from park position.

TLS™ Plus self levels with implement attached and hitch is raised or lowered.

Cold Weather Operation

Use normal cold weather procedures. TLS™ Plus system may require extra time to function correctly. TLS™ Plus system may not operate if system has not recentered during first 80 seconds of operation. Several restarts may be required. If it still doesn’t start, contact your John Deere™ dealer.

Troubleshooting

If fault occurs in leveling control, Service Alert indicator (A) comes on, and a DTC message appears on CommandCenter™ display. To clear fault, stop and restart engine. If fault reoccurs, contact your John Deere™ dealer.
