Change Starting Fluid Can (If Equipped)

CAUTION:

RXA0135276
RXA0135276-UN-28AUG13

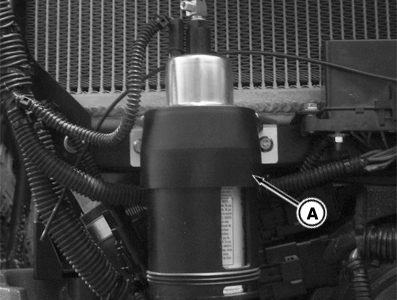

Starting Fluid Can

A - Canister

Do not use starting fluid near fire, sparks, or flames. Read caution information on container. Protect container against damage. Do not carry starting fluid canisters inside cab.

  1. Pull hood release and raise hood to access canister (A).

  2. Remove safety cap and plastic spray nozzle from new canister.

  3. Loosen canister and remove old can.

    IMPORTANT: To avoid drawing dust into engine, always keep starting fluid canister installed bottom side up, clean and in position.

  4. Install new can and tighten canister.

TO84419,00000C1-19-20130913
