Low Fuel or Low Diesel Exhaust Fluid (DEF) Warning

Fuel indicator light (A) will flash and alarm will sound when approximately 39 L (10 gal) of fuel remains.

DEF light (B) will flash and alarm will sound when fluid level is low.

NOTE: It is recommended that DEF tank be filled at each fuel tank fill.

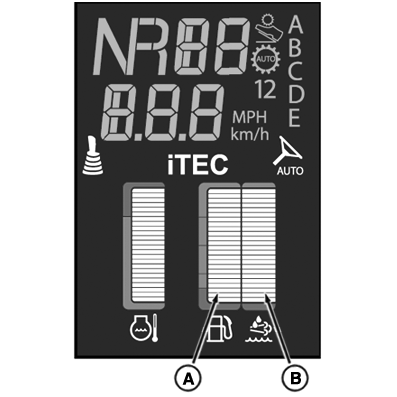

RXA0129257-UN-31OCT12

Corner Post Display

A - Fuel Indicator Light

B - Diesel Exhaust Fluid (DEF) Light
