Using Auxiliary Heaters

TS210-UN-23AUG88

RXA0129146-UN-30OCT12

Safety—Coolant Heater

CAUTION: To avoid electrical shock or fire, use 3-wire, 14 AWG (14 gauge), heavy-duty electrical cord with 15 amp rating, suitable for outdoor use. Always plug electrical cord into 120 volt outlet protected by GFI (Ground Fault Interrupter).

Before connecting heater to power source, be sure that element is immersed in coolant. NEVER energize heater in air. Doing so can cause element sheath to burst causing personal injury.

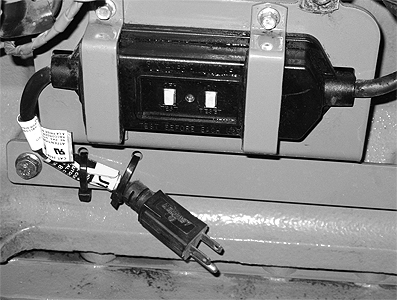

IMPORTANT: Ground fault circuit interrupter on tractor protects tractor only, not electrical wiring supplying power to tractor. Test all ground fault interrupters before each use.

Your John Deere™ dealer has ground fault interrupter-equipped heaters¹:

• Engine Coolant (1000 W)
• Transmission (200 W)
• Hydraulic Charge Pump (200 W)

Connect heaters and ground fault interrupter to ground fault protected 120 volt electrical outlet.
