Hydraulic Trailer Brakes (If Equipped)
CAUTION: Avoid possible injury from losing control of tractor
equipped with IVT™ /AutoPowr™ transmission operating on downhill slopes. Tractor wheels may lock
and skid on slippery downhill slopes (see Downhill Operation in Slippery
Conditions in Operating IVT™/AutoPowr™ Transmission section
of this Operator’s Manual).

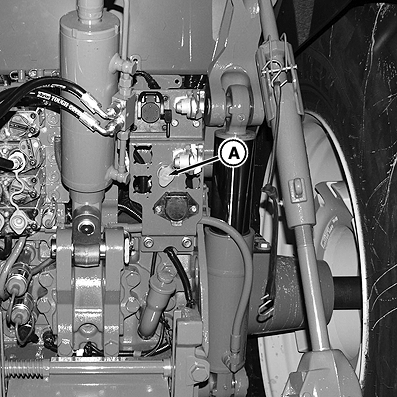

RXA0112902-UN-14JAN11
A - Hydraulic Brake Coupler
Remove dust cover from hydraulic trailer brake coupler (A). Connect pressure hose to brake coupler, making sure hose end and coupler are clean.IMPORTANT: To reduce brake wear, make sure pressure hose is connected, select same gear for both downhill and uphill driving, and check hydraulic trailer brake regularly for correct functionality.
Depress brake pedals to operate hydraulic trailer brake. Braking effect depends on pressure applied to brake pedals.
Bring tractor-trailer to complete stop, shift transmission to PARK before dismounting tractor and disconnecting hydraulic lines from couplers. Seal connections with dust covers whenever hoses are disconnected.
|
IVT is a trademark of Deere & Company AutoPowr is a trademark of Deere & Company |
