CommandARM™ Control Functions

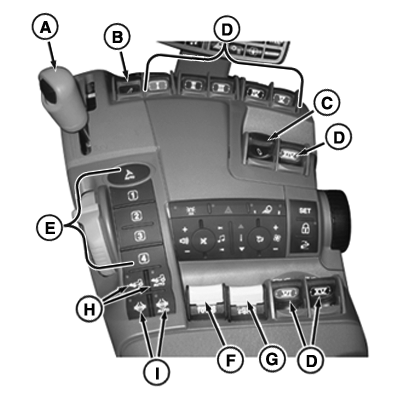

RXA0134359-UN-01AUG13
CommandARM™ Controls
Intelligent Total Equipment Control, iTEC™, allows multiple reoccurring tasks to be performed with touch of one button, up to four sequences.One sequence made up of series of functions, operations, and distances used at start of field. A second sequence used at water way in center of field. Sequences remain in memory until deleted or overwritten, even if electrical current is switched off.
Each sequence can include up to 20 functions.
A sequence is a course of events from start of first function to completion of last function that the operator can start by pressing one of the sequence buttons.
iTEC™ pages are accessed through Generation 4 CommandCenter™.
Chart below describes item and function from CommandARM™ image.
|
iTEC™ Functionality |
||
|---|---|---|
|
Component |
Function(s) |
|
|
A |
IVT™ /AutoPowr™ Set Speed Forward (IVT™/AutoPowr™ Only) |
Change Set Speed |
|
CommandQuad™ Transmission |
Upshift or Downshift in Forward Gear and Change Ranges with Push Buttons A, B, C |
|
|
e23™ Transmission |
Upshift or Downshift in forward gear |
|
|
B |
Rear Hitch (If Equipped) |
Raise Detent and Lower Detent |
|
C |
Front Hitch (If equipped) |
Raise and Lower |
|
D |
SCVs (CommandARM™ ) |
Extend, Retract, Float, and Cancel |
|
E |
iTEC™ Buttons |
1/2/3/4 |
|
F |
Front PTO (If Equipped) |
On/Off |
|
G |
Rear PTO |
On/Off |
|
H |
MFWD |
On/Off/Auto |
|
I |
Differential Lock |
On/Off/Auto |
|
CommandARM is a trademark of Deere & Company iTEC is a trademark of Deere & Company CommandCenter is a trademark of Deere & Company IVT is a trademark of Deere & Company AutoPowr is a trademark of Deere & Company CommandQuad is a trademark of Deere & Company e23 is a trademark of Deere & Company |
TO84419,00000F5-19-20140701 |
