IVT™/AutoPowr™ Requirements

Before transferring control to implement, prepare implement as indicated in implement Operator's Manual. Transfer control using AutoTrac™ resume switch as presented in implement Operator's Manual.

RXA0133408-UN-09DEC13

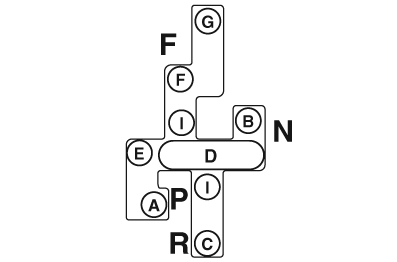

Right-Hand Reverser

RXA0100319-UN-26JAN09

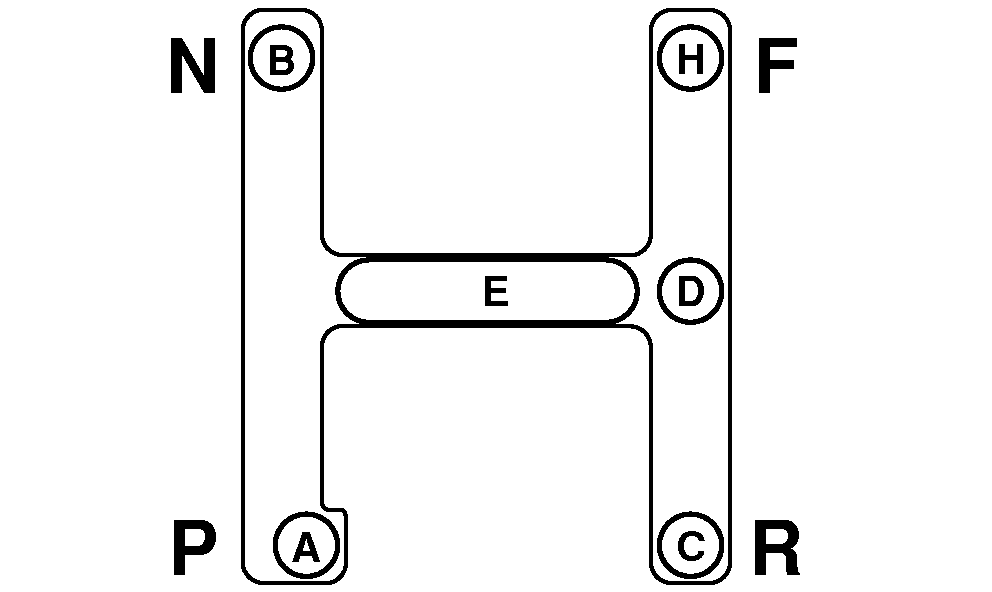

Left-Hand Reverser

RXA0077571-UN-10JUN05

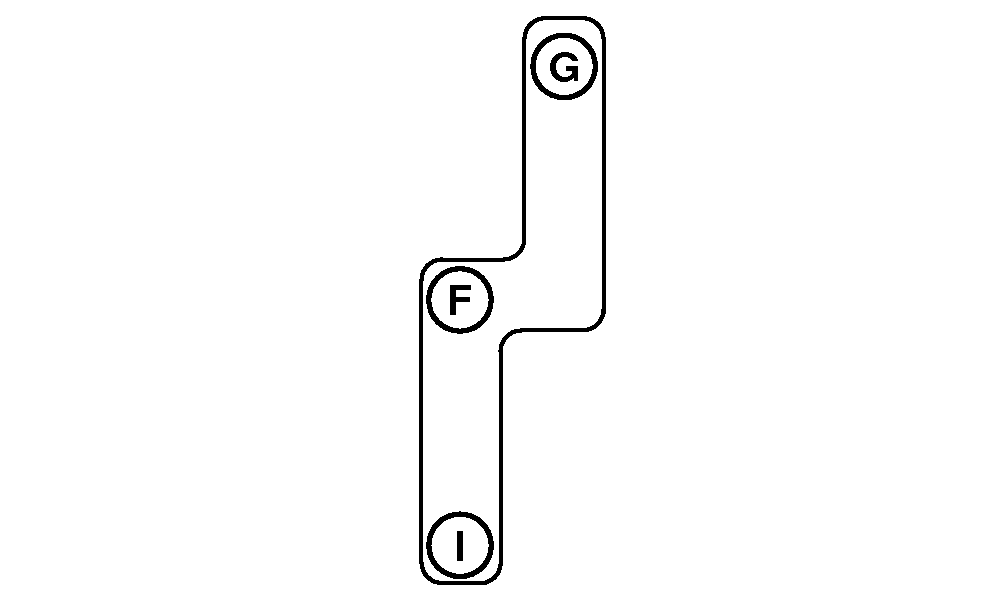

Left-Hand Reverser Speed Lever

A - Park

B - Neutral

C - Reverse

D - Power Zero

E - Scroll Position

F - Forward Speed Band 1

G - Forward Speed Band 2

H - Forward

I - Minimum Speed

NOTE: Limit is determined by maximum speed setting and position of speed control lever. This set limit cannot be exceeded by implement.

Following guidelines must be met before transferring control to implement:

• Operator in seat.
• No malfunctions present in IVT™/AutoPowr™ transmission.
• Reverser lever must be in Scroll (E), Power Zero™ (D), or forward position (F or G) for left hand, right hand reverser, forward position (H) for left hand reverser.

While operating, implement has ability to:

• Adjust speed up to operator set limit.
• Stop tractor.
• Drive tractor again after stopping; with operator’s confirmation.

Operator’s approval to start or restart motion:

• Cycle reverser lever. Move lever from forward to scroll to forward position again.

  Cycle reverser lever when a round baler stops tractor to eject full bale.

• Depress clutch pedal or brake pedal while tractor rolls to stop. Hold pedal down while tractor is stopped. Tractor starts moving when pedal is released, if implement requests speed.

To withdraw control using reverser lever:

• When driving: Move lever out of forward position.
• When stopped: Move lever to Reverse, Neutral or Park.

To withdraw control using speed control lever or speed wheel:

NOTE: Speed may always be reduced.

Set speed limit may be increased within 2 seconds after engaging travel speed Auto Mode. Current travel speed can be limited by other processes (e.g. iTEC™). This limit will be observed; however, the limit will not be considered as an intervention by operator.

• If implement commands stopping tractor and speed is increased, travel speed Auto Mode will be ended.
• Increasing speed will end Auto Mode. Implement has all information to inform operator that this interaction will end travel speed Auto Mode (see implement Operator's Manual).
