Operating Tractor Implement Automation™

IMPORTANT: Various requirements must be met by tractor and implements to allow TIA™ to function correctly. See information in this section of this Operator’s Manual and implement Operator’s Manual.

  1. Connect TIA™ equipment to tractor using ISO connection, see Connecting Compatible Equipment in Operator Station section of this Operator’s Manual.

    RXA0135370
    RXA0135370-UN-25SEP13

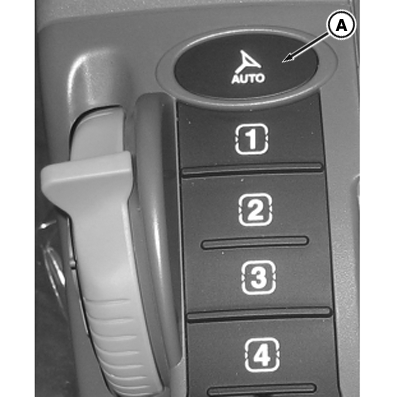

    AutoTrac™ Switch

    A - AutoTrac™ Resume Button


  2. Select AutoTrac™ Resume Button (A) on CommandARM™ .

  3. Follow implement operator's manual instructions to operate implement.

TIA is a trademark of Deere & Company
AutoTrac is a trademark of Deere & Company
CommandARM is a trademark of Deere & Company

TO84419,0000107-19-20130923
